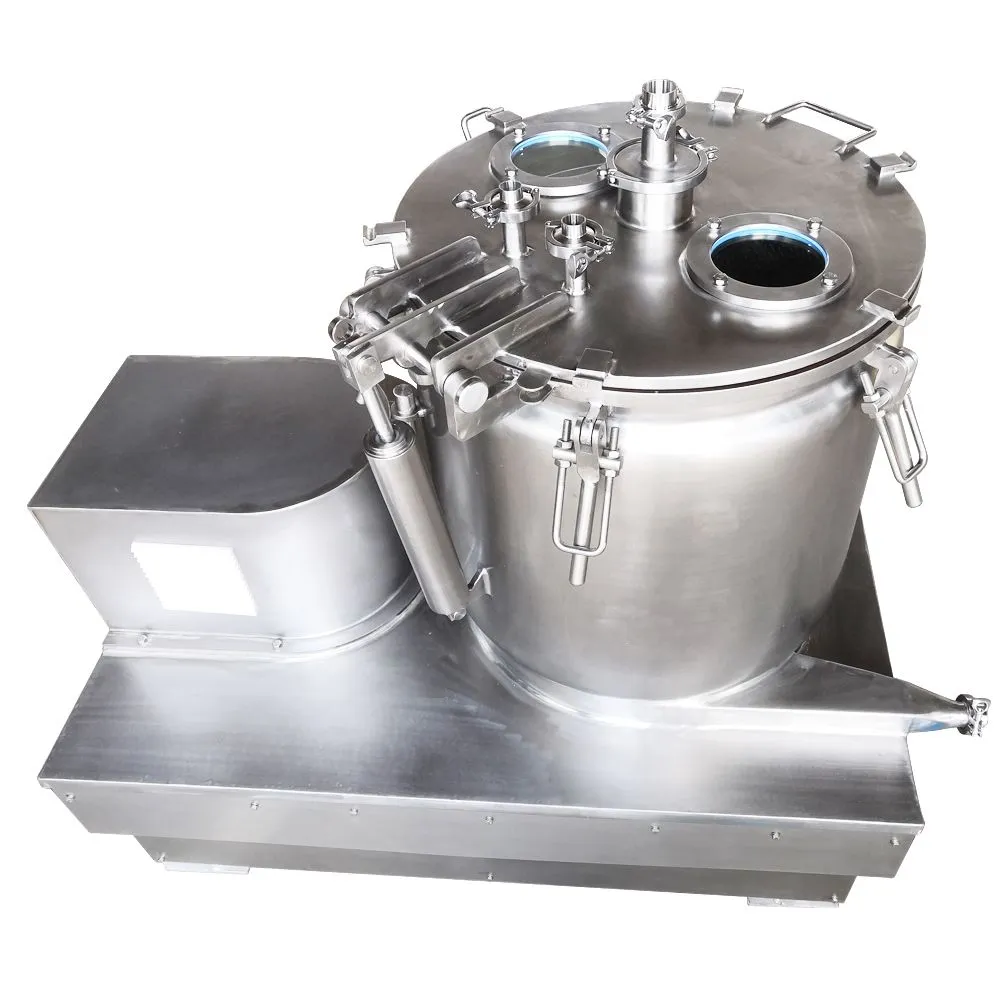

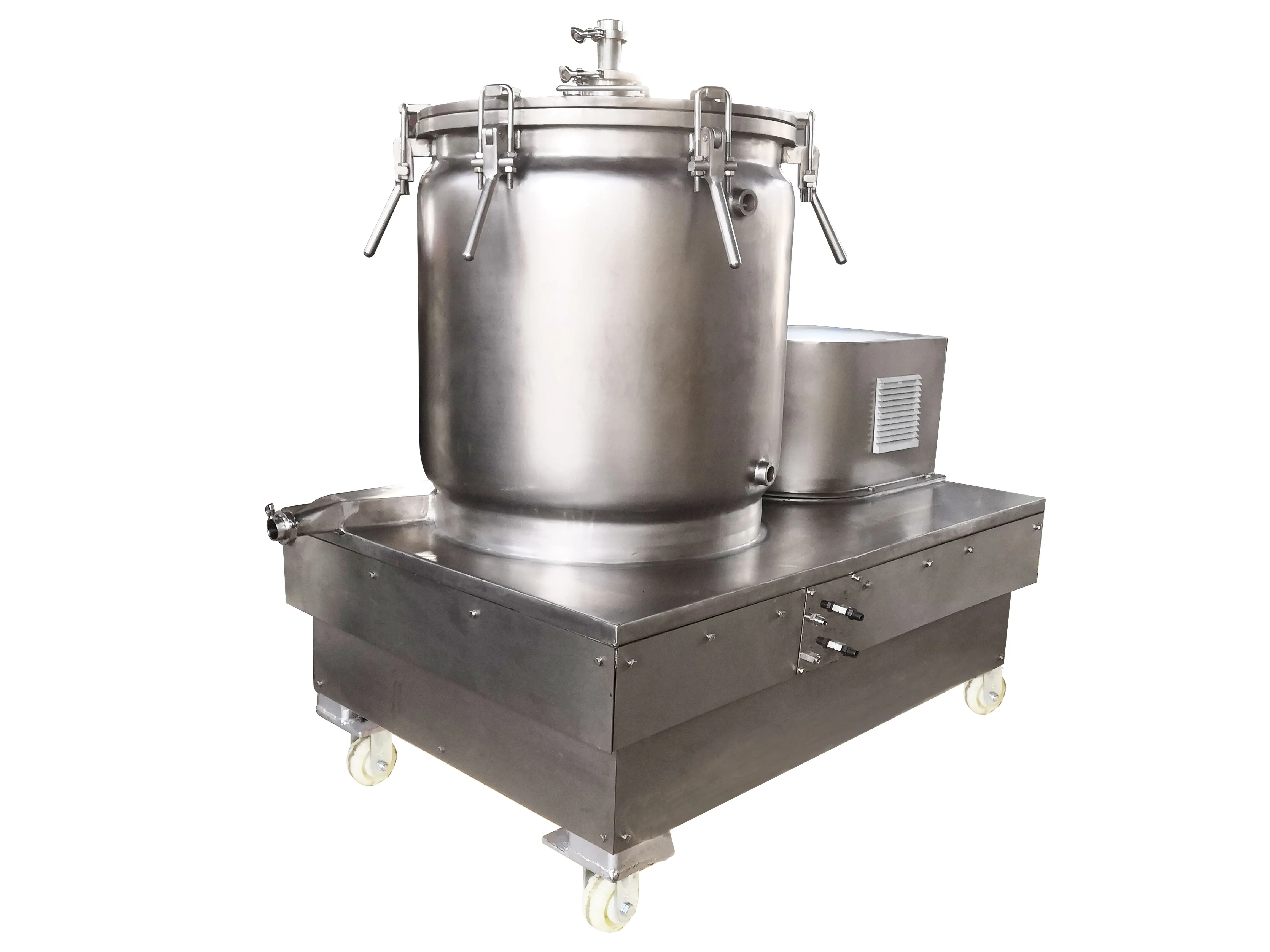

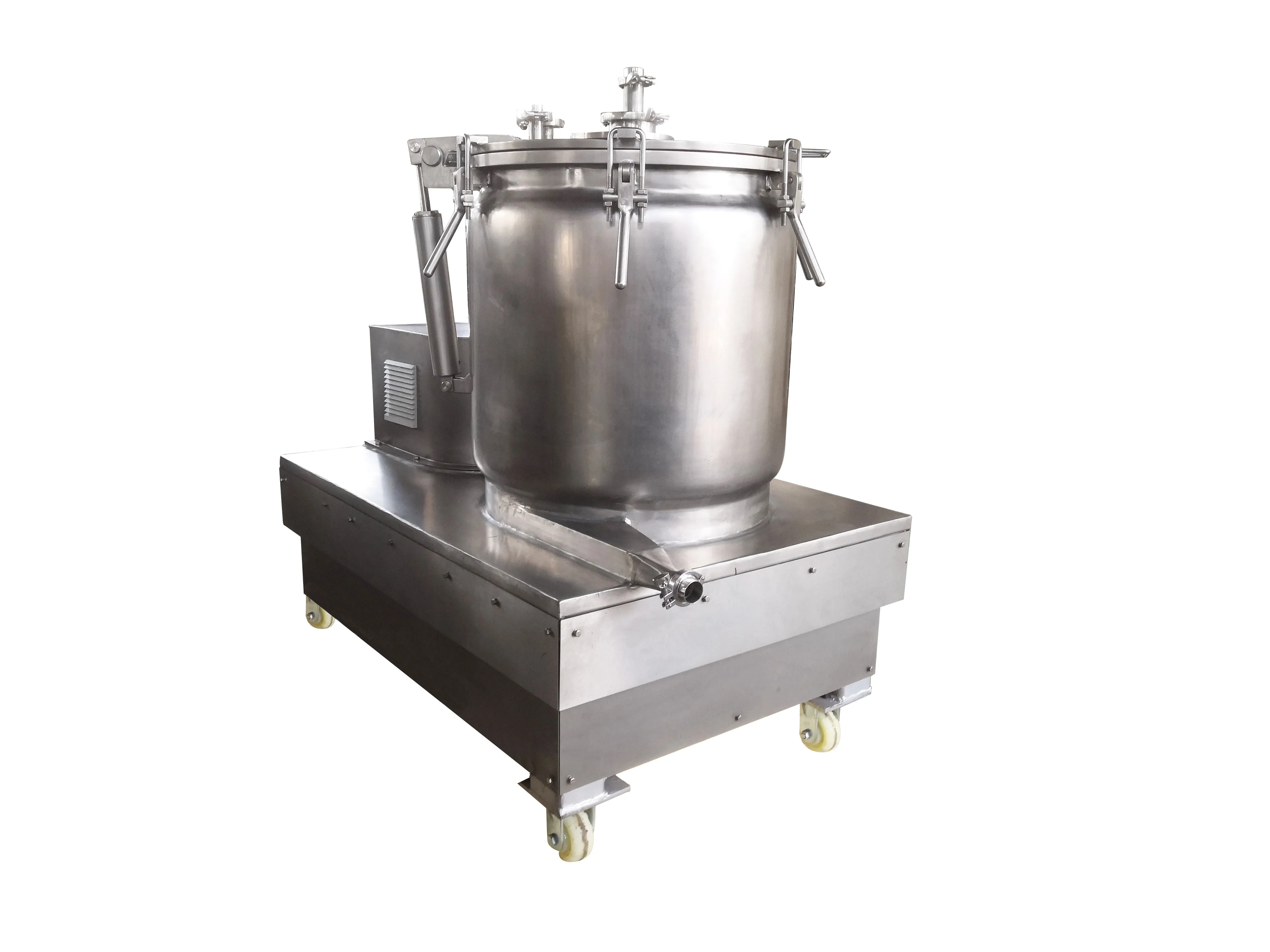

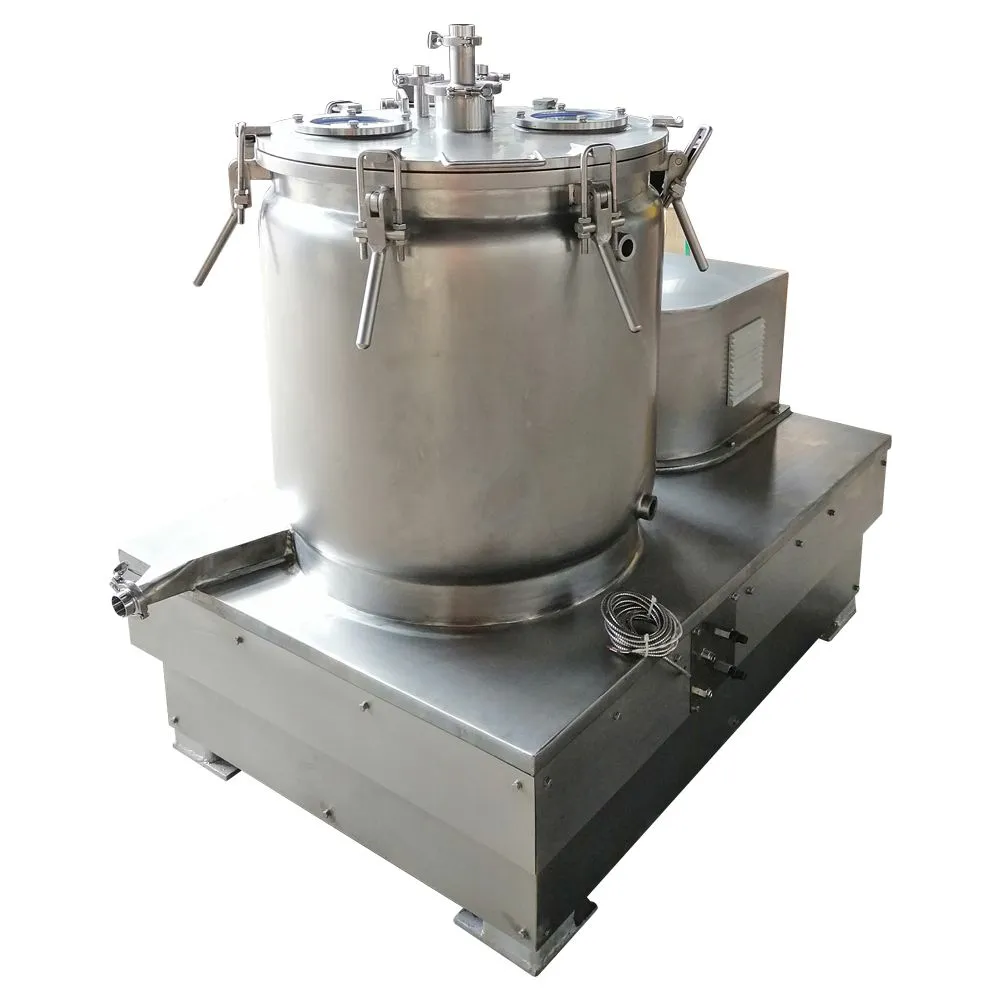

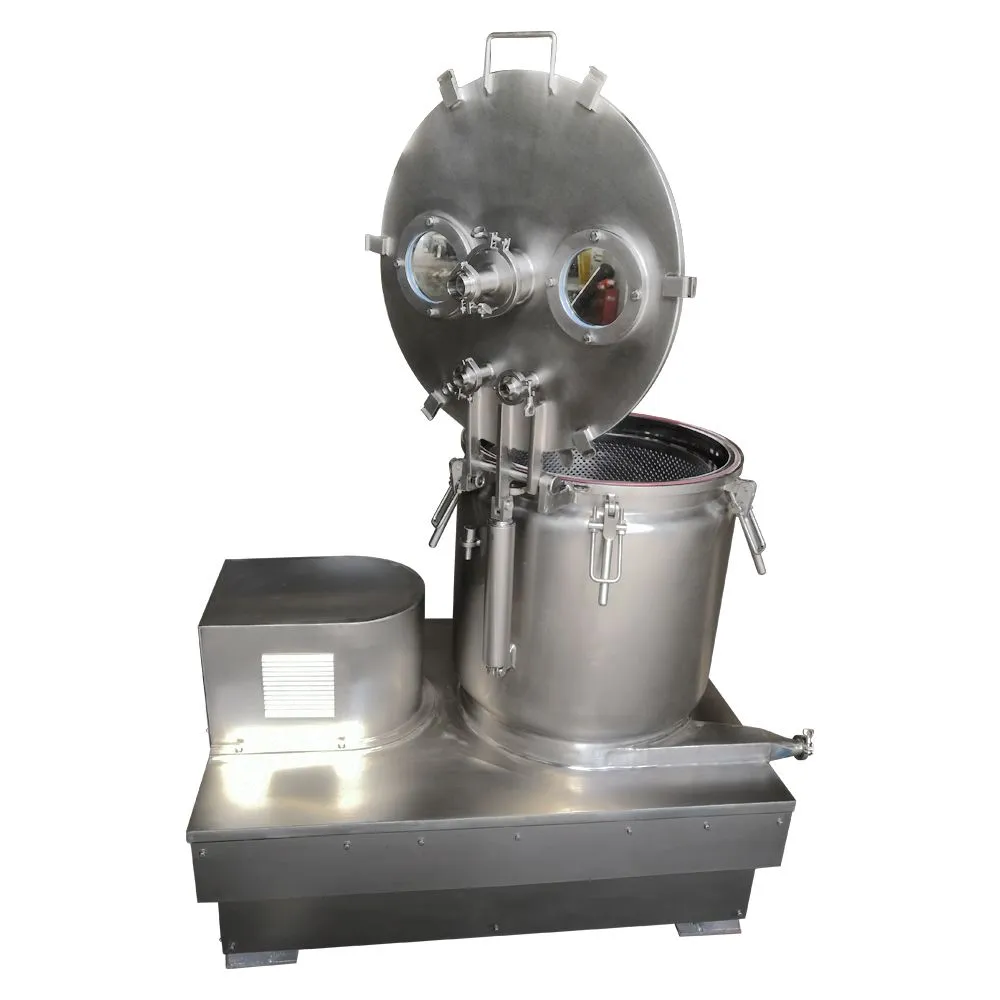

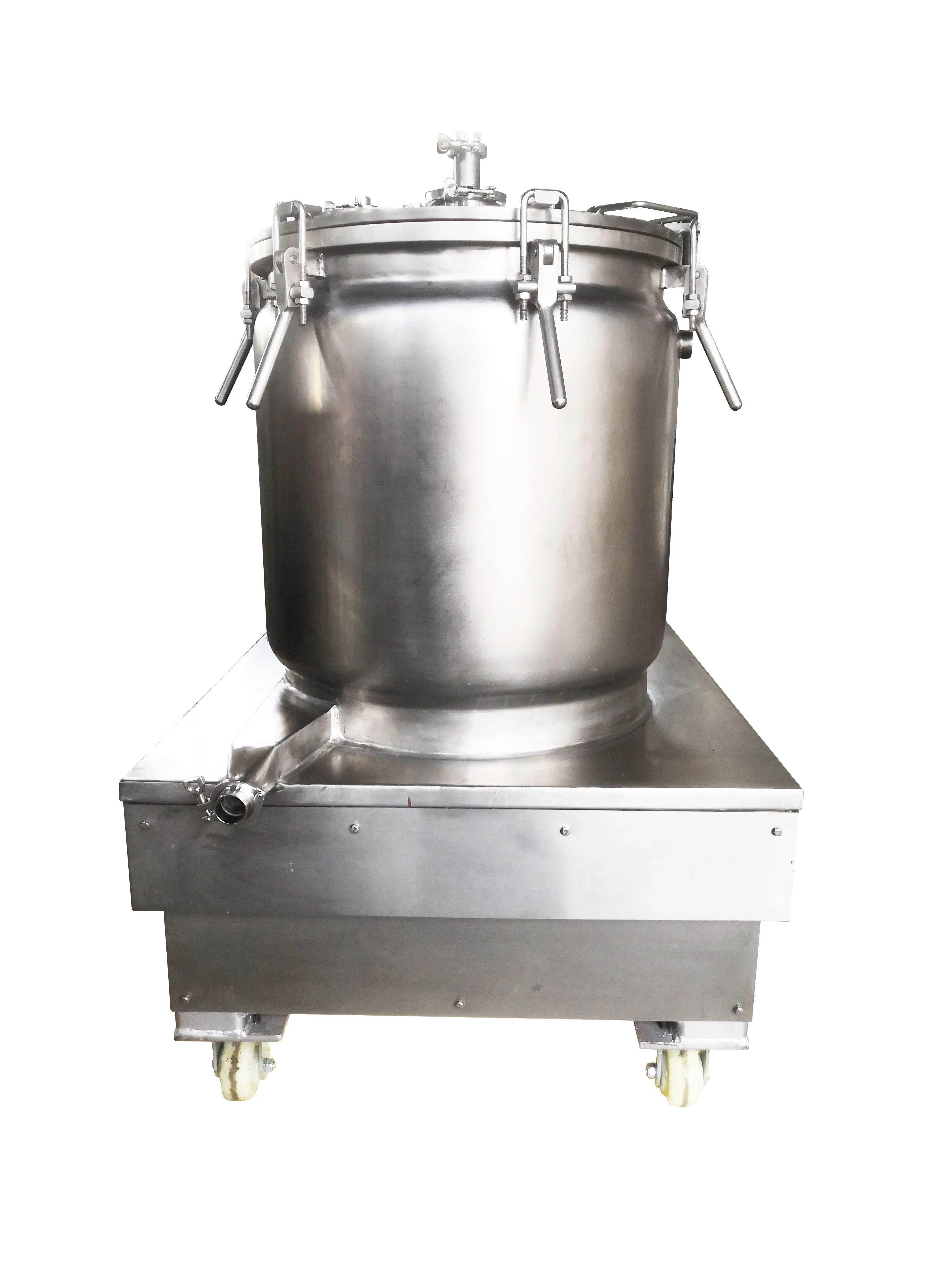

The CFE30 series centrifuge is top discharging, hermetic closure type equipment. The material is fed into the drum through the feeding pipe on the hermetic closure casing; under the action of the centrifuge force field, the liquid-phase passes through the filter medium and the discharged out of the machine, while the solid-phase material is retained inside the drum and, after the machine is stopped, the material is discharged from the top. The centrifuge has features such as smooth running, easy & convenient operation as well as conducting feeding, washing and dehydrating under the state of hermetic closure, etc.
Technical Parameters
|
ITEM |
CFE30 |
|
Basket diameter (mm) |
500 |
|
Volume (L) |
98 |
|
Speed (r/min) |
1600 |
|
Maximum separation factor |
715 |
|
Loading limit (KG) |
15 |
|
Motor |
UL Certified 3.KW Ex-Proof |
|
Motor Power(KW) |
3.7 |
|
Machine weight (KG) |
722 |
|
Dimensions: L×W×H (mm) |
1360x860x1300 |
|
Withstand voltage (MPa) |
≤0.4 |
|
Dry hemp |
~30lbs/batch |
|
Power |
230V/60HZ/3P |
Feature
- 304 Sanitary Stainless-Steel Construction
- Reinforced Sight Glass
- Bi-Directional Agitation
- Auto/Manual Controls
- Digital HMI Interface
- Variable Speed Control
- Easy Material Loading/ Unloading
- Heavy-Duty Spin Drying
- Support provided
Diagram of CFE30 centrifuge
(1)Shaft seat (2) rotary drum (3) motor (4) Case (5) Cover (6)Open power unit (7) Shock absorber (8) Frame
Wearing parts list
|
NO. |
Seal Name |
Material |
Specifications |
Single Quantity |
Application Area |
Remark |
|
1 |
Tetrafluoride frame seal ring |
PTFE |
80X100X10 |
2 |
Upper gland |
|
|
2 |
Skeleton ring |
Fluorine rubber |
45X70X8 |
1 |
Lower gland |
|
|
3 |
O-rings |
Silicone coated with tetrafluoron |
Φ12X2.65 |
6 |
Spindle and process hole |
|
|
4 |
O-rings |
Silicone coated with tetrafluoron |
Φ122X3.55 |
1 |
Spindle |
|
|
5 |
O-rings |
Silicone coated with tetrafluoron |
Φ67X3.55 |
1 |
Spindle seal |
|
|
6 |
O-rings |
Silicone coated with tetrafluoron |
Φ8X2.65 |
6 |
Upper gland |
|
|
7 |
O-rings |
Silicone coated with tetrafluoron |
Φ236X7 |
1 |
Bearing housing |
|
|
8 |
O-rings |
Silicone coated with tetrafluoron |
Φ8X2.65 |
1 |
Upper gland |
|
|
9 |
O-rings |
Silicone coated with tetrafluoron |
Φ590X10 |
1 |
Flange on the outer casing |
|
|
10 |
Flat mat |
Tetrafluoro |
|
2 |
Glass |
As shown in the drawings |
|
11 |
